ForwardAuth

Using an External Service to Check for Credentials

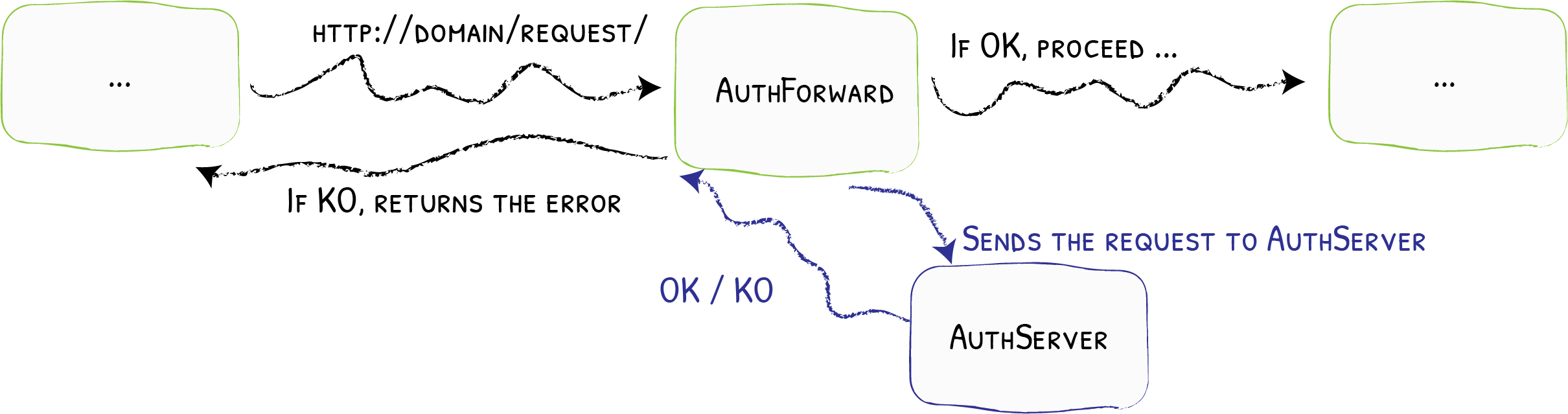

The ForwardAuth middleware delegate the authentication to an external service. If the service response code is 2XX, access is granted and the original request is performed. Otherwise, the response from the authentication server is returned.

Configuration Examples

Docker

# Forward authentication to authserver.com
labels:
- "traefik.http.middlewares.test-auth.forwardauth.address=https://authserver.com/auth"
- "traefik.http.middlewares.test-auth.forwardauth.authResponseHeaders=X-Auth-User, X-Secret"
- "traefik.http.middlewares.test-auth.forwardauth.tls.ca=path/to/local.crt"
- "traefik.http.middlewares.test-auth.forwardauth.tls.caOptional=true"
- "traefik.http.middlewares.test-auth.forwardauth.tls.cert=path/to/foo.cert"
- "traefik.http.middlewares.test-auth.forwardauth.tls.insecureSkipVerify=true"
- "traefik.http.middlewares.test-auth.forwardauth.tls.key=path/to/foo.key"
- "traefik.http.middlewares.test-auth.forwardauth.trustForwardHeader=true"

Kubernetes

apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  forwardAuth:
    address: https://authserver.com/auth
    trustForwardHeader: true
    authResponseHeaders:
    - X-Auth-User
    - X-Secret
    tls:
      ca: path/to/local.crt
      caOptional: true
      cert: path/to/foo.cert
      key: path/to/foo.key

Marathon

"labels": {
  "traefik.http.middlewares.test-auth.forwardauth.address": "https://authserver.com/auth",
  "traefik.http.middlewares.test-auth.forwardauth.authResponseHeaders": "X-Auth-User,X-Secret",
  "traefik.http.middlewares.test-auth.forwardauth.tls.ca": "path/to/local.crt",
  "traefik.http.middlewares.test-auth.forwardauth.tls.caOptional": "true",
  "traefik.http.middlewares.test-auth.forwardauth.tls.cert": "path/to/foo.cert",
  "traefik.http.middlewares.test-auth.forwardauth.tls.insecureSkipVerify": "true",
  "traefik.http.middlewares.test-auth.forwardauth.tls.key": "path/to/foo.key",
  "traefik.http.middlewares.test-auth.forwardauth.trustForwardHeader": "true"
}

Rancher

# Forward authentication to authserver.com
labels:
- "traefik.http.middlewares.test-auth.forwardauth.address=https://authserver.com/auth"
- "traefik.http.middlewares.test-auth.forwardauth.authResponseHeaders=X-Auth-User, X-Secret"
- "traefik.http.middlewares.test-auth.forwardauth.tls.ca=path/to/local.crt"
- "traefik.http.middlewares.test-auth.forwardauth.tls.caOptional=true"
- "traefik.http.middlewares.test-auth.forwardauth.tls.cert=path/to/foo.cert"
- "traefik.http.middlewares.test-auth.forwardauth.tls.InisecureSkipVerify=true"
- "traefik.http.middlewares.test-auth.forwardauth.tls.key=path/to/foo.key"
- "traefik.http.middlewares.test-auth.forwardauth.trustForwardHeader=true"

File (TOML)

# Forward authentication to authserver.com
[http.middlewares]
  [http.middlewares.test-auth.forwardAuth]
    address = "https://authserver.com/auth"
    trustForwardHeader = true
    authResponseHeaders = ["X-Auth-User", "X-Secret"]

    [http.middlewares.test-auth.forwardAuth.tls]
      ca = "path/to/local.crt"
      caOptional = true
      cert = "path/to/foo.cert"
      key = "path/to/foo.key"

File (YAML)

# Forward authentication to authserver.com
http:
  middlewares:
    test-auth:
      forwardAuth:
        address: "https://authserver.com/auth"
        trustForwardHeader: true
        authResponseHeaders:
        - "X-Auth-User"
        - "X-Secret"
        tls:
          ca: "path/to/local.crt"
          caOptional: true
          cert: "path/to/foo.cert"
          key: "path/to/foo.key"

Configuration Options

address

The address option defines the authentication server address.

trustForwardHeader

Set the trustForwardHeader option to true to trust all the existing X-Forwarded-* headers.

authResponseHeaders

The authResponseHeaders option is the list of the headers to copy from the authentication server to the request.

tls

The tls option is the TLS configuration from Traefik to the authentication server.
